3D Resin Printer Exposure Settings

Last Updated: August 1ST, 2022

The following table is intended to provide manufacturer recommended, community submitted, and verified print settings for any and all printers and resins. The includes resin settings from brands like Anycubic, Elegoo, 3D Materials and more. The exposure times, layer height, and lift speeds can be used as a starting point in resin slicers like Chitubox and Lychee.

Most Mono X entries are at 80% UV power, unless otherwise specified. The number of base layers is typically between 4-10 and slicers often default it to 6 layers. The light-off delay is sufficient at 1 second, unless your printer calculates that as the total movement duration. You can check this by seeing if the printer waits for a second after completing retraction.

To submit settings and pictures join our discord

To browse mechanical properties of various resins

Verified Printer UV Power Resin Brand Name Color Mix Layer Height Exposure Base Exposure Lift Speed Temperature

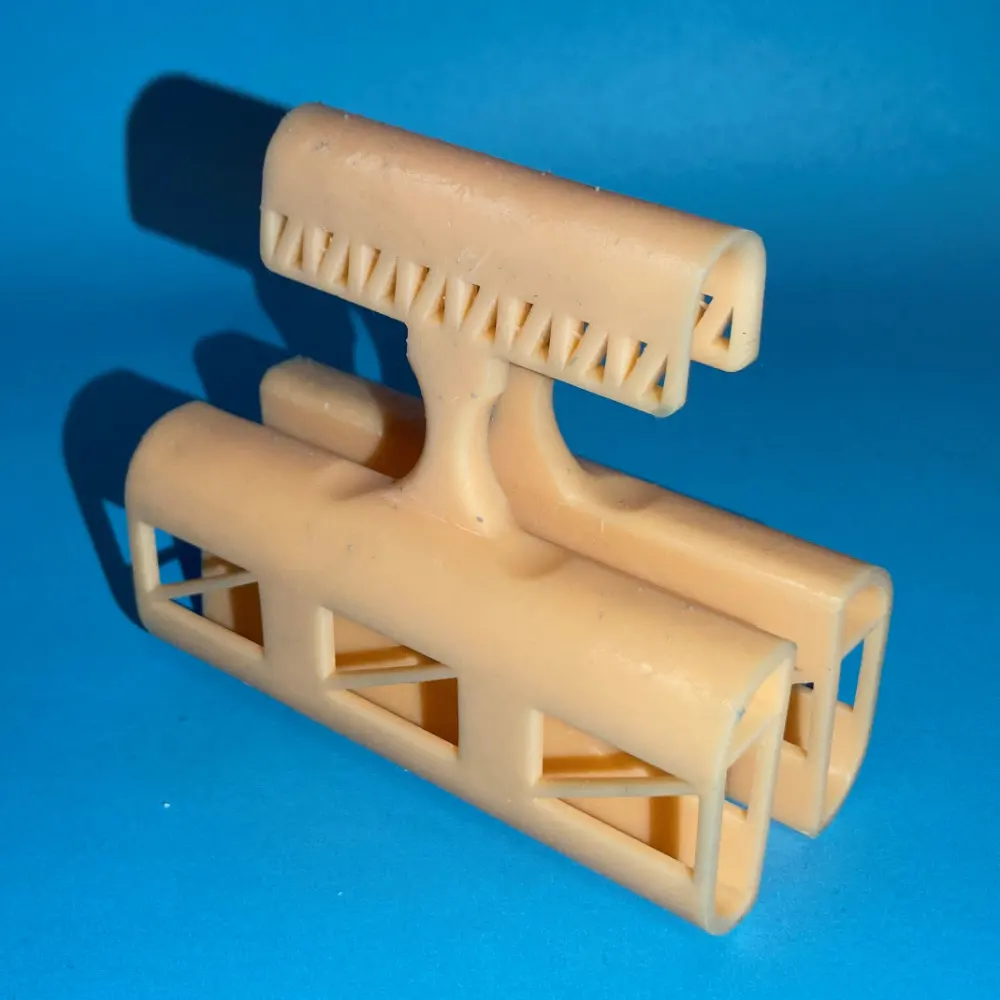

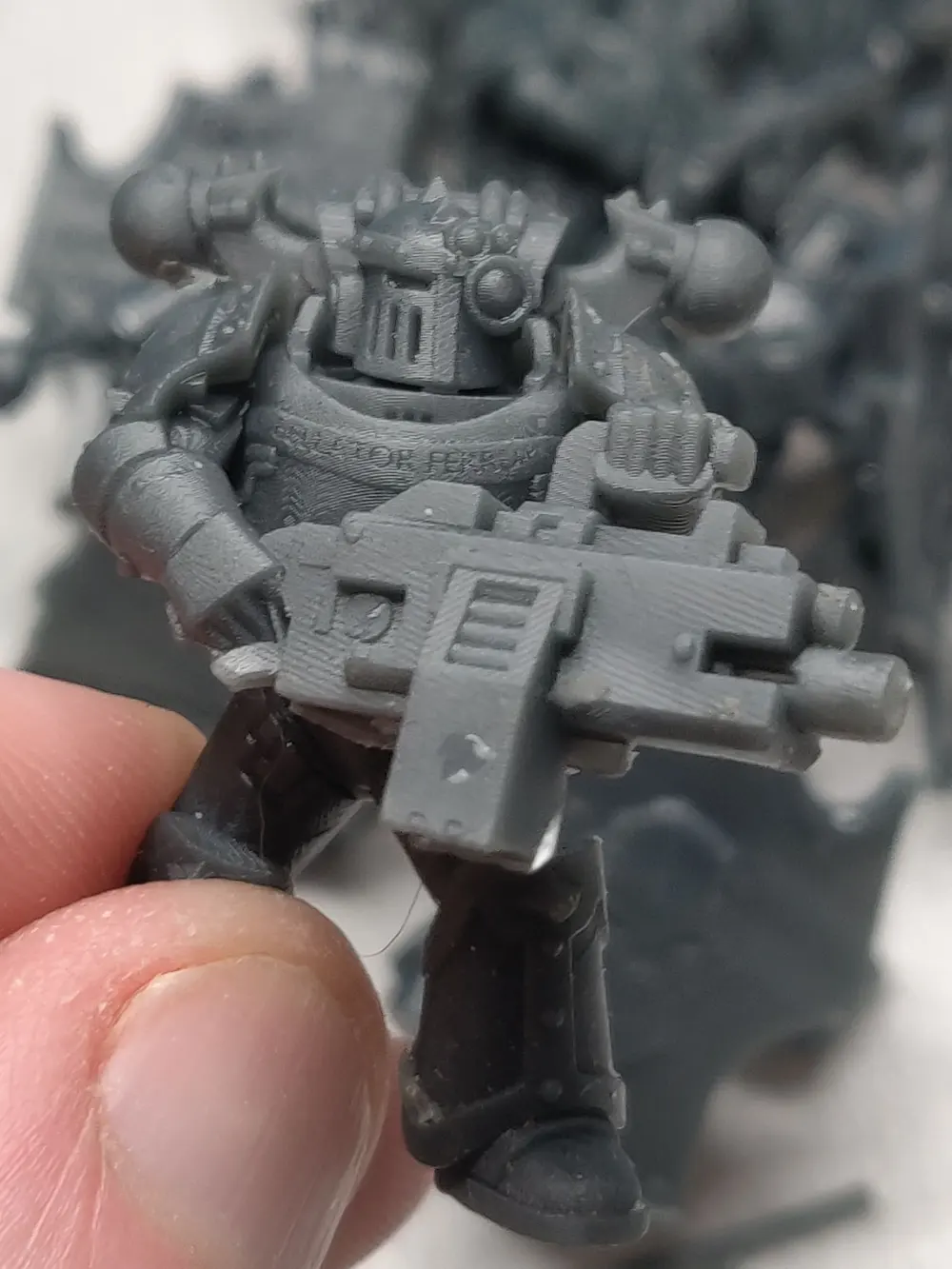

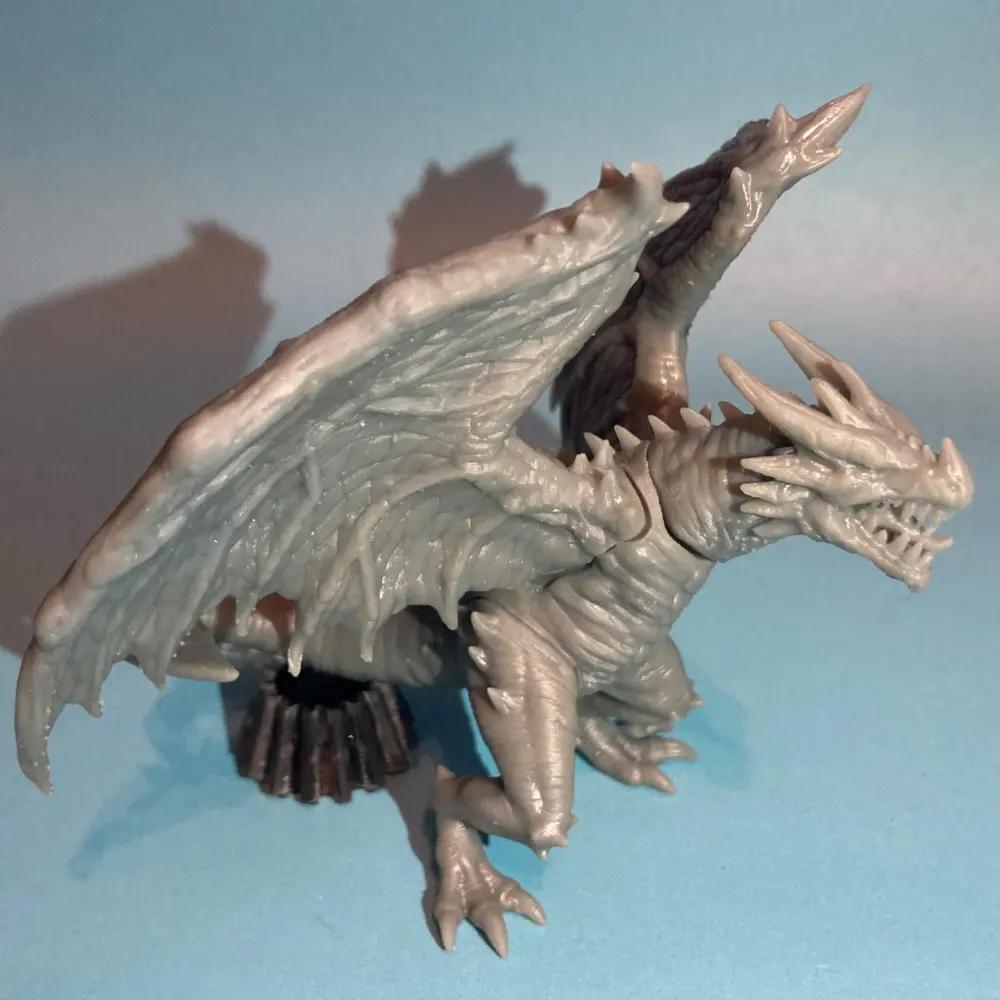

Image Anycubic Ultra 100% 3D Materials SuperFast Grey Tenacious 10% 0.03 mm 1 s 6 s 120 mm/min

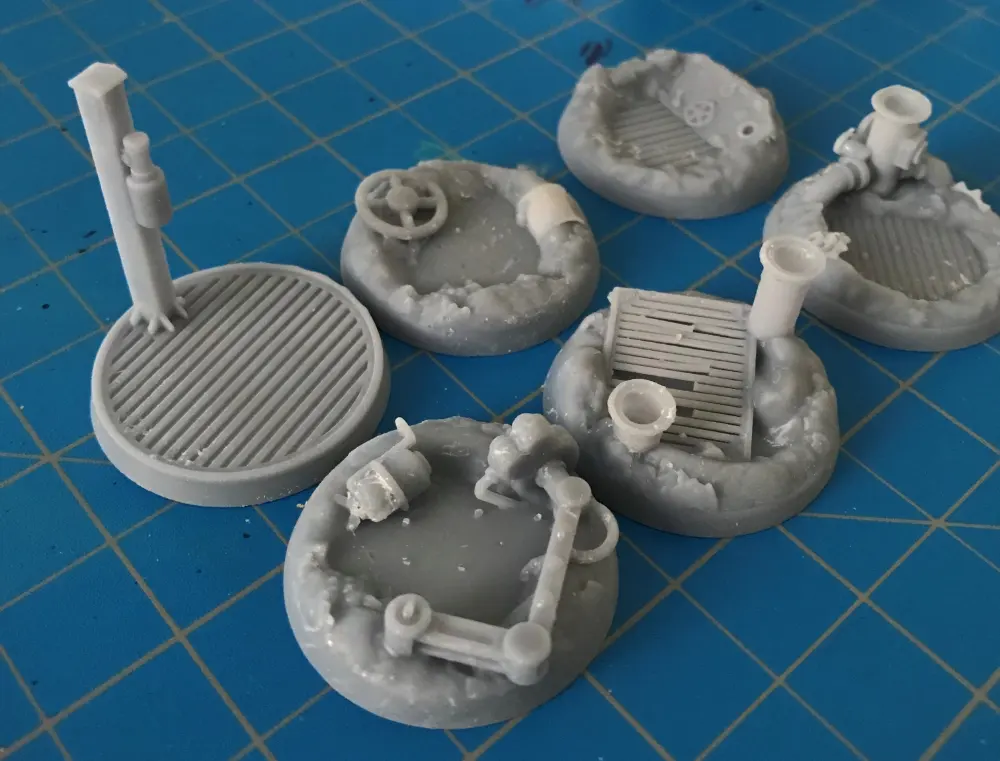

Image Epax E10-8K 100% eSun Plant-Based Grey 0.05 mm 3 s 25 s 40 mm/min 20°C
Anycubic Mono X 80% Anycubic ABS-Like Black 0.05 mm 1.6 s 40 s 60 mm/min 27°C

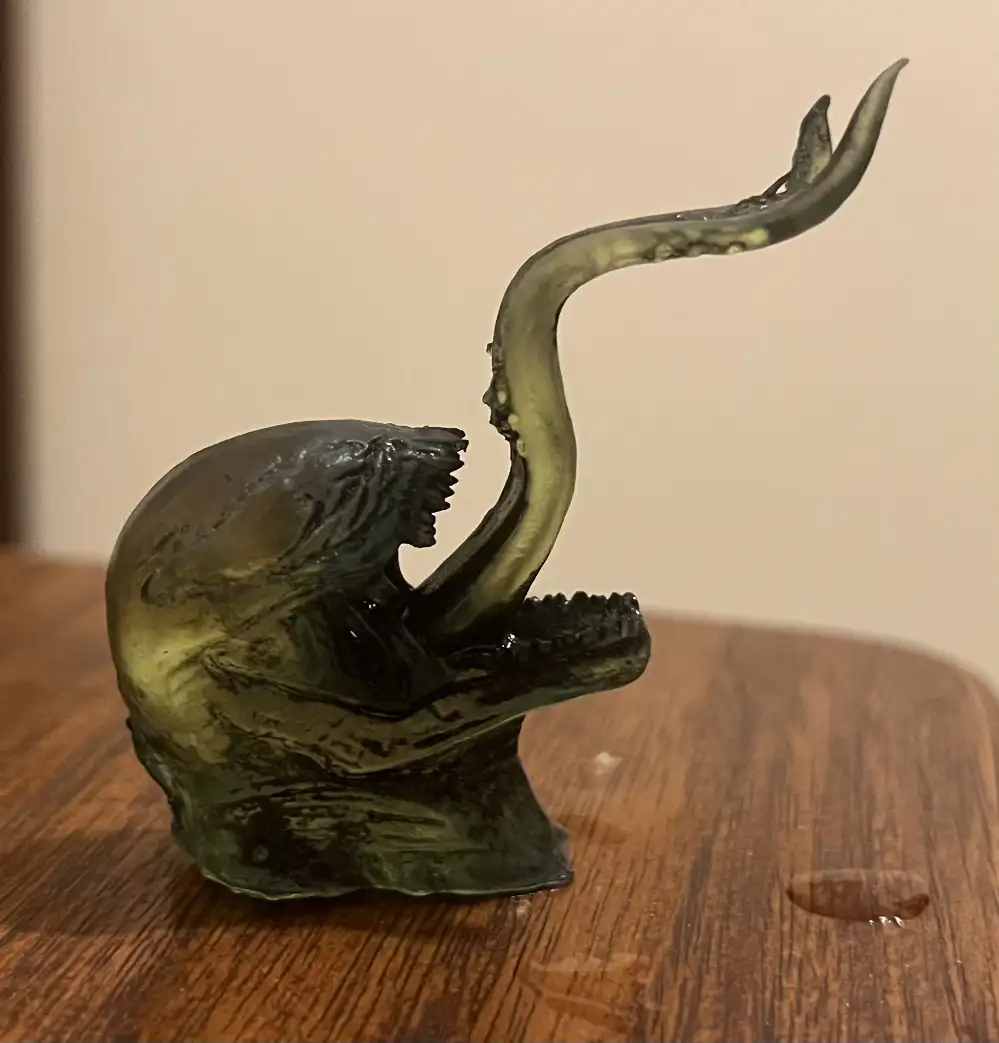

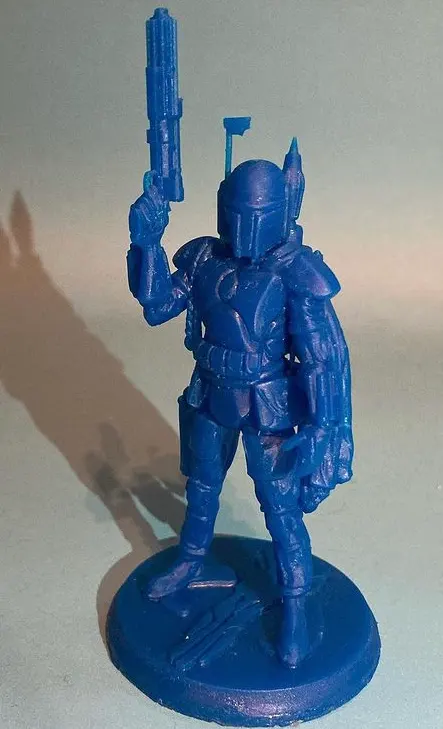

Image Anycubic Mono X 80% Doumii Water-Washable Blue Cobalt 0.05 mm 1.6 s 40 s 60 mm/min 21°C

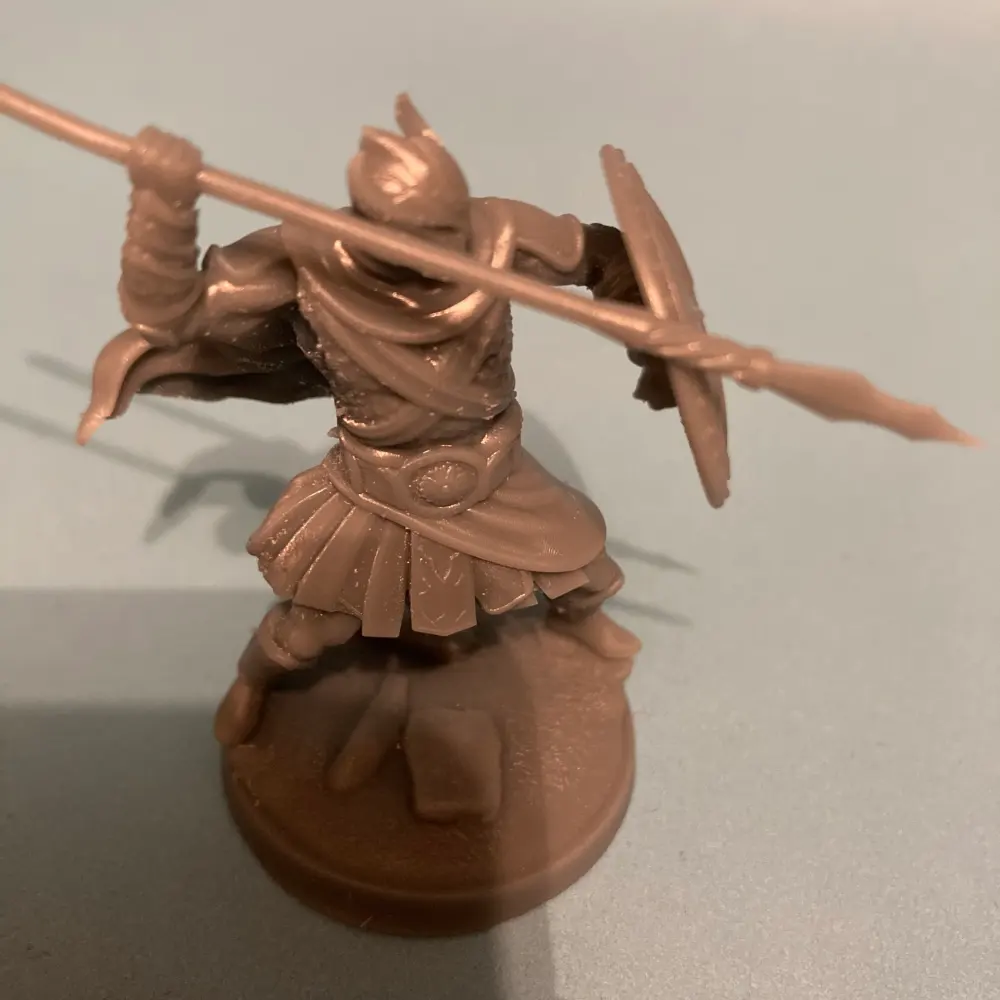

Image Anycubic Mono X 80% Phrozen ABS-Like Grey Tenacious 10% 0.05 mm 2 s 20 s 60 mm/min 25°C

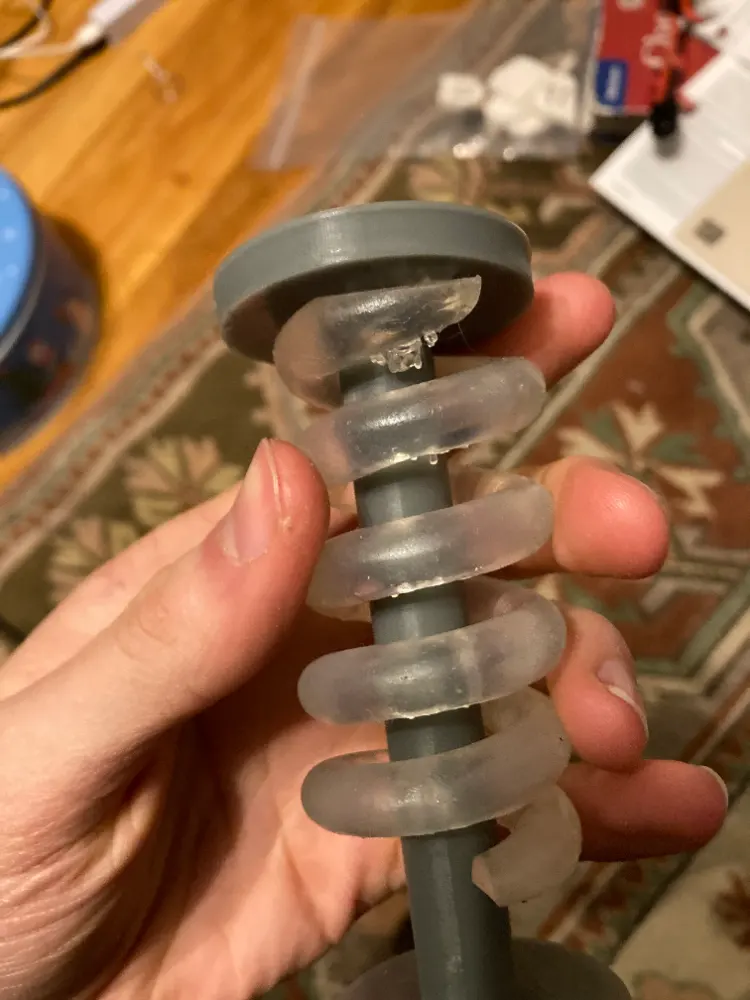

Image Longer Orange 30 100% Siraya Tech Tenacious Clear 0.05 mm 12 s 80 s 48 mm/min 30°C
Image Longer Orange 30 100% Siraya Tech Simple Smoky Black 0.05 mm 6 s 60 s 48 mm/min 30°C
Image Yidimu Falcon Pro 100% Rich Opto Water-Washable Black 0.05 mm 6.75 s 85 s 45 mm/min 28°C
Image Elegoo Mars 2 Pro 100% Anycubic ABS-Like Clear 0.05 mm 2.5 s 20 s 80 mm/min 25°C
Image Yidimu Falcon Pro 100% Rich Opto Water-Washable White 0.05 mm 5.5 s 85 s 45 mm/min 28°C
Image Anycubic Mono SE 100% Siraya Tech ABS-Like Grey 0.05 mm 1.6 s 20 s 60 mm/min 20°C
Image Prusa SL1S 100% 3D Materials SuperPP Clear SuperFast 40% 0.05 mm 1.8 s 15 s
Image Anycubic Mono SE 100% Anycubic Plant-Based Green 0.05 mm 1 s 30 s 60 mm/min 20°C
Image Prusa SL1S 100% 3D Materials SuperFast Grey 0.05 mm 1.2 s 10 s 22°C
Image Prusa SL1S 100% eSun Plant-Based Grey 0.05 mm 2.3 s 25 s 22°C
Image Prusa SL1S 100% 3D Materials SuperFast Black 0.05 mm 1 s 10 s 22°C
Image Prusa SL1S 100% 3D Materials SuperPP Clear 0.2 mm 3.5 s 15 s 22°C
Image Prusa SL1S 100% 3D Materials SuperPP Clear 0.1 mm 2.3 s 10 s 22°C
Image Prusa SL1S 100% 3D Materials SuperFlex Clear 0.05 mm 1.6 s 10 s 23°C
Image Prusa SL1S 100% Siraya Tech Tenacious Clear 0.05 mm 3 s 15 s 22°C
Image Anycubic Photon S 100% Siraya Tech ABS-Like White 0.05 mm 6 s 50 s 65 mm/min 30°C
Image Anycubic Mono X 80% Anycubic ABS-Like Grey 0.05 mm 2.3 s 30 s 60 mm/min 24°C
Image Elegoo Mars 2 Pro 100% Anycubic ABS-Like Clear 0.05 mm 2.5 s 20 s 80 mm/min 25°C
Image Anycubic Mono X 80% Anycubic ABS-Like Grey 0.05 mm 2.1 s 25 s 60 mm/min 27°C
Image Prusa SL1S 100% 3D Materials SuperFast Grey 0.05 mm 0.8 s 10 s 21°C
Image Prusa SL1S 100% 3D Materials SuperFast Grey 0.1 mm 1 s 15 s 21°C
Image Prusa SL1S 100% Overhanglab Flex 57A Clear 0.05 mm 3.5 s 10 s 21°C
Image Prusa SL1S 100% Overhanglab Model Blue 0.05 mm 2.6 s 25 s 21°C
Image Prusa SL1S 100% 3D Materials SuperHDT Clear 0.05 mm 4 s 30 s 21°C
Image Prusa SL1S 100% Elegoo Plant-Based Green 0.05 mm 2.1 s 25 s 21°C
Image Anycubic Mono 100% Anycubic ABS-Like Green 0.05 mm 1.8 s 30 s 180 mm/min 21°C
Image Prusa SL1S 100% Anycubic ABS-Like Black Elegoo Plant-Based 40% 0.05 mm 2 s 25 s 21°C
Image Prusa SL1S 100% Elegoo ABS-Like Grey 0.05 mm 2.3 s 30 s 21°C
Image Prusa SL1S 100% Elegoo Plant-Based Green 0.05 mm 7.5 s 40 s 21°C
Image Prusa SL1S 100% Anycubic ABS-Like Black 0.05 mm 8 s 40 s 21°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast Grey 0.05 mm 4.5 s 28 s 120 mm/min 25°C
Image Anycubic Mono X 80% Anycubic ABS-Like Grey 0.05 mm 2.3 s 25 s 60 mm/min 25°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast Grey 0.05 mm 4.5 s 28 s 120 mm/min 25°C
Image Prusa SL1S 100% 3D Materials SuperFast Black 0.05 mm 1 s 10 s 22°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast Grey 0.05 mm 4.5 s 28 s 120 mm/min 25°C
Image Prusa SL1S 100% Overhanglab Strong White 0.05 mm 3.2 s 20 s 21°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast Black 0.05 mm 5 s 28 s 120 mm/min 25°C
Image Prusa SL1S 100% Overhanglab Strong White 0.05 mm 3 s 20 s 21°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast Black 0.05 mm 4.5 s 28 s 120 mm/min 25°C
Image Prusa SL1S 100% 3D Materials SuperFast Grey 0.05 mm 0.8 s 20 s 19°C
Image Prusa SL1S 100% 3D Materials SuperFast Black 0.05 mm 1 s 15 s 19°C
Image Prusa SL1S 100% 3D Materials SuperFast Grey 0.05 mm 0.8 s 15 s 19°C
Image Prusa SL1S 100% 3D Materials SuperFast Grey 0.05 mm 0.8 s 20 s 20°C
Image Prusa SL1S 100% 3D Materials SuperFast Grey 0.05 mm 0.8 s 10 s 22°C
Image Prusa SL1S 100% 3D Materials SuperFast Grey 0.05 mm 0.8 s 10 s 21°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast White 0.05 mm 5 s 35 s 120 mm/min 25°C
Image Prusa SL1S 100% Overhanglab Standard Orange 0.05 mm 2.6 s 15 s 21°C
Image Anycubic Mono X 80% 3D Materials SuperFast Grey 0.05 mm 0.8 s 10 s 60 mm/min 26°C
Image Prusa SL1S 100% Overhanglab Flex 52D Clear 0.05 mm 3.8 s 15 s 21°C
Image Prusa SL1S 100% Overhanglab Model Blue 0.05 mm 2.6 s 25 s 21°C
Image Prusa SL1S 100% Overhanglab Strong White 0.05 mm 3 s 25 s 21°C
Image Prusa SL1S 100% Overhanglab Standard Orange 0.05 mm 2.6 s 25 s 21°C
Image Prusa SL1S 100% Eryone Standard Blue 0.05 mm 2.5 s 25 s 21°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast White 0.05 mm 5 s 40 s 120 mm/min 25°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast White 0.05 mm 5 s 40 s 120 mm/min 25°C
Image Prusa SL1S 100% Eryone Standard Blue 0.05 mm 2.5 s 25 s 21°C
Image Prusa SL1S 100% 3D Materials SuperPCS Grey 0.05 mm 2.4 s 20 s 21°C
Image Prusa SL1S 100% 3D Materials SuperRigid White 0.05 mm 3.6 s 60 s 22°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast White 0.05 mm 5 s 40 s 120 mm/min 25°C
Image Prusa SL1S 100% Overhanglab Model Blue 0.05 mm 2.6 s 25 s 21°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast Grey 0.05 mm 5 s 40 s 120 mm/min 25°C
Image Anycubic Mono X 80% 3D Materials SuperPP Clear 0.05 mm 1.8 s 6 s 60 mm/min 30°C
Image Anycubic Mono X 80% 3D Materials SuperPP Clear 0.05 mm 1.3 s 4 s 60 mm/min 30°C
Image Anycubic Photon Zero 100% 3D Materials SuperFast White 0.05 mm 5 s 40 s 120 mm/min 25°C
Image Epax E10-8K 100% Elegoo Plant-Based Green 0.05 mm 2 s 35 s 40 mm/min 20°C
Anycubic Mono X 80% Anycubic ABS-Like Clear 0.05 mm 2.0 s 40 s 120 mm/min 23°C
Anycubic Mono 100% Siraya Tech Simple Smoky Black 0.05 mm 1.8 s 30 s 60 mm/min 21°C
Anycubic Mono 100% Monocure Rapid Clear 0.05 mm 1.4 s 30 s 240 mm/min 19°C
Anycubic Mono 100% Monocure Rapid Grey 0.05 mm 1.6 s 30 s 60 mm/min 22°C
Anycubic Mono SE 100% Alphasense Wax Castable Green 0.05 mm 1.5 s 25 s 240 mm/min 26°C
Anycubic Mono SE 100% Anycubic Plant-Based Grey 0.05 mm 1.5 s 20 s 60 mm/min 26°C
Anycubic Mono SE 100% Siraya Tech ABS-Like Grey 0.05 mm 1.5 s 22 s 240 mm/min 22°C
Anycubic Mono SE 100% Elegoo ABS-Like Red 0.05 mm 1.5 s 50 s 180 mm/min 20°C
Epax X1-4K 100% Epax High Temp Grey 0.05 mm 3.0 s 25 s 60 mm/min
Epax X1-4K 100% Epax Water-Washable Grey 0.05 mm 2.0 s 25 s 60 mm/min
Epax X1-4K 100% Epax Plant-Based Blue 0.05 mm 2.0 s 25 s 60 mm/min
Epax X1-4K 100% Epax Wax Castable Blue 0.05 mm 4.5 s 30 s 30 mm/min
Anycubic Mono X 80% Siraya Tech Simple Smoky Black 0.05 mm 1.6 s 30 s 60 mm/min 28°C
Anycubic Mono X 80% Siraya Tech Sculpt Clear 0.05 mm 2.2 s 30 s 60 mm/min 26°C
Longer Orange 30 100% Anycubic ABS-Like Black 0.05 mm 6 s 80 s 48 mm/min 28°C
Image Prusa SL1 100% 3D Materials SuperFast Clear 0.05 mm 3.5 s 30 s 25°C
Phrozen Mighty 4K 100% Phrozen ABS-Like Grey 0.05 mm 2.3 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen ABS-Like White 0.05 mm 2.3 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen Aqua Blue 0.05 mm 2.3 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen TR250 Grey 0.05 mm 4.3 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen TR250LV Grey 0.05 mm 2.3 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen Tough Green 0.05 mm 2.8 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen Low-Irritation Beige 0.05 mm 4.8 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen Rock-Black Stiff Black 0.05 mm 2.8 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen Flex Beige 0.05 mm 2.8 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen Wax Castable Green 0.05 mm 4.3 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen SC-801 Clear 0.05 mm 5.5 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen Water-Washable Grey 0.05 mm 2.3 s 35 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen TR300 Grey 0.05 mm 1.3 s 20 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen ONYX Rigid Pro 410 Black 0.05 mm 9 s 38 s 60 mm/min
Phrozen Mini 4K 100% Phrozen ABS-Like Grey 0.05 mm 2.3 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen ABS-Like White 0.05 mm 2.3 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen Aqua Blue 0.05 mm 2.3 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen TR250 Grey 0.05 mm 4.3 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen TR250LV Grey 0.05 mm 2.3 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen Tough Green 0.05 mm 2.8 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen Low-Irritation Beige 0.05 mm 4.8 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen Rock-Black Stiff Black 0.05 mm 2.8 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen Flex Beige 0.05 mm 2.8 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen Wax Castable Green 0.05 mm 4.3 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen SC-801 Clear 0.05 mm 5.5 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen Water-Washable Grey 0.05 mm 2.3 s 30 s 60 mm/min
Phrozen Mini 4K 100% Phrozen TR300 Grey 0.05 mm 1.3 s 20 s 60 mm/min
Phrozen Mighty 4K 100% Phrozen ONYX Rigid Pro 410 Black 0.05 mm 9 s 38 s 60 mm/min
Anycubic Mono X 80% Anycubic ABS-Like Grey 0.05 mm 1.9 s 40 s 240 mm/min 23°C
Anycubic Mono X 80% Anycubic ABS-Like White 0.05 mm 1.8 s 20 s 180 mm/min 19°C
Anycubic Mono X 80% Anycubic Plant-Based Grey 0.05 mm 2.0 s 45 s 60 mm/min 21°C
Anycubic Mono X 80% Elegoo Water-Washable Grey 0.05 mm 1.5 s 20 s 140 mm/min 18°C
Anycubic Mono X 80% Elegoo Plant-Based Green 0.05 mm 1.5 s 60 s 60 mm/min 21°C
Anycubic Mono X 80% eSun Precision Beige 0.05 mm 2.0 s 20 s 180 mm/min 24°C
Anycubic Mono X 80% eSun Plant-Based Grey 0.05 mm 2.0 s 40 s 240 mm/min 25°C
Elegoo Saturn 100% Liqcreate Premium White 0.05 mm 2.5 s 20 s 90 mm/min
Elegoo Saturn 100% Liqcreate Premium Model Beige 0.05 mm 4.0 s 15 s 90 mm/min
Elegoo Saturn 100% Liqcreate Premium Tough White 0.05 mm 7.0 s 25 s 60 mm/min
Elegoo Saturn 100% Liqcreate ABS-Like Blue 0.05 mm 9.0 s 30 s 90 mm/min
Elegoo Saturn 100% Liqcreate ABS-Like Black 0.05 mm 9.0 s 30 s 90 mm/min
Elegoo Saturn 100% Liqcreate Wax Castable Blue 0.05 mm 4.5 s 30 s 60 mm/min
Elegoo Saturn 100% Liqcreate Premium Flex Teal 0.05 mm 5.0 s 30 s 60 mm/min
Elegoo Saturn 100% Liqcreate Impact Clear 0.05 mm 10.0 s 40 s 90 mm/min
Elegoo Saturn 100% Liqcreate Strong-X Grey 0.05 mm 9.0 s 30 s 90 mm/min
Elegoo Saturn 100% Liqcreate Tough-X Black 0.05 mm 12.0 s 40 s 90 mm/min
Elegoo Saturn 100% Liqcreate Flexible-X Black 0.05 mm 10.0 s 40 s 60 mm/min
Elegoo Saturn 100% Liqcreate Composite-X White 0.05 mm 8.0 s 30 s 90 mm/min
Elegoo Saturn 100% Liqcreate Dental Beige 0.05 mm 4.5 s 20 s 60 mm/min
Elegoo Saturn 100% Liqcreate Dental Grey 0.05 mm 5.5 s 20 s 60 mm/min
Elegoo Mars 2 100% Liqcreate Premium White 0.05 mm 1.5 s 40 s 90 mm/min
Elegoo Mars 2 100% Liqcreate Premium Model Beige 0.05 mm 2.9 s 50 s 60 mm/min
Elegoo Mars 2 100% Liqcreate Premium Tough White 0.10 mm 5.5 s 80 s 90 mm/min
Elegoo Mars 2 100% Liqcreate ABS-Like Blue 0.10 mm 9.5 s 80 s 90 mm/min
Elegoo Mars 2 100% Liqcreate ABS-Like Black 0.05 mm 6.0 s 60 s 90 mm/min
Elegoo Mars 2 100% Liqcreate Wax Castable Blue 0.05 mm 2.6 s 120 s 45 mm/min
Elegoo Mars 2 100% Liqcreate Premium Flex Teal 0.05 mm 5.0 s 60 s 60 mm/min
Elegoo Mars 2 100% Liqcreate Impact Clear 0.05 mm 9.0 s 70 s 60 mm/min
Elegoo Mars 2 100% Liqcreate Strong-X Grey 0.05 mm 5.8 s 50 s 90 mm/min
Elegoo Mars 2 100% Liqcreate Tough-X Black 0.05 mm 14.0 s 60 s 90 mm/min
Elegoo Mars 2 100% Liqcreate Flexible-X Black 0.05 mm 15.0 s 60 s 90 mm/min
Elegoo Mars 2 100% Liqcreate Composite-X White 0.05 mm 7.5 s 60 s 90 mm/min
Elegoo Mars 2 100% Liqcreate Dental Beige 0.05 mm 4.0 s 70 s 60 mm/min
Elegoo Mars 2 100% Liqcreate Dental Grey 0.05 mm 5.0 s 70 s 60 mm/min
Elegoo Mars 2 100% Liqcreate Hazard Glow Green 0.10 mm 8.0 s 70 s 90 mm/min
Anycubic Mono X 80% Siraya Tech Blu Clear 0.05 mm 1.9 s 20 s 120 mm/min 25°C
Anycubic Mono X 80% Siraya Tech Blu Blue 0.05 mm 2.5 s 20 s 60 mm/min 25°C
Anycubic Mono X 80% Siraya Tech Sculpt Grey 0.05 mm 2.5 s 35 s 60 mm/min 25°C
Anycubic Mono X 80% Nova3d Water-Washable Grey 0.05 mm 2.0 s 20 s 180 mm/min 20°C
Elegoo Mars 2 100% Elegoo ABS-Like Grey 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo ABS-Like Black 0.05 mm 3.0 s 35 s
Elegoo Mars 2 100% Elegoo ABS-Like White 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo ABS-Like Clear 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo ABS-Like Red 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo ABS-Like Green 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo ABS-Like Blue 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo ABS-Like Yellow 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo ABS-Like Maroon 0.05 mm 3.0 s 45 s
Elegoo Mars 2 100% Elegoo ABS-Like Beige 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo Water-Washable Grey 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo Water-Washable Black 0.05 mm 3.0 s 35 s
Elegoo Mars 2 100% Elegoo Water-Washable White 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo Water-Washable Red 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo Water-Washable Green 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo Water-Washable Blue 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo Water-Washable Yellow 0.05 mm 2.5 s 35 s
Elegoo Mars 2 100% Elegoo Water-Washable Beige 0.05 mm 2.5 s 35 s
Voxelab Proxima 6.0 100% Voxelab Standard Grey 0.03 mm 4.5 s 20 s 60 mm/min 21°C
Voxelab Proxima 6.0 100% Voxelab Standard Grey 0.03 mm 4.5 s 20 s 60 mm/min 21°C
Anycubic Mono 100% 3D Materials SuperFast Grey 0.1 mm 0.7 s 5 s
Anycubic Mono X 50% 3D Materials SuperFast Grey 0.1 mm 1.6 s 10 s
Longer Orange 30 100% 3D Materials SuperFast Grey 0.1 mm 3.7 s 30 s
Creality LD-002R 100% 3D Materials SuperFast Grey 0.1 mm 3.6 s 40 s
Creality LD-002H 100% 3D Materials SuperFast Grey 0.1 mm 1.4 s 5 s
Elegoo Mars 100% 3D Materials SuperFast Grey 0.1 mm 3.4 s 30 s
Elegoo Mars 2 100% 3D Materials SuperFast Grey 0.1 mm 0.9 s 15 s
Elegoo Mars 2 Pro 100% 3D Materials SuperFast Grey 0.1 mm 0.9 s 5 s
Elegoo Saturn 100% 3D Materials SuperFast Grey 0.1 mm 1.2 s 5 s
Nova3D Bene4 100% 3D Materials SuperFast Grey 0.1 mm 1.7 s 5 s
Nova3D Bene4 Mono 100% 3D Materials SuperFast Grey 0.1 mm 1 s 5 s
Nova3D Elfin 2 Mono 100% 3D Materials SuperFast Grey 0.1 mm 1 s 10 s
Anycubic Mono 100% 3D Materials SuperFast Grey 0.05 mm 0.6 s 5 s
Anycubic Mono X 50% 3D Materials SuperFast Grey 0.05 mm 1.2 s 10 s
Longer Orange 30 100% 3D Materials SuperFast Grey 0.05 mm 2.6 s 20 s
Creality LD-002R 100% 3D Materials SuperFast Grey 0.05 mm 3.4 s 30 s
Creality LD-002H 100% 3D Materials SuperFast Grey 0.05 mm 0.6 s 5 s
Elegoo Mars 100% 3D Materials SuperFast Grey 0.05 mm 3.2 s 25 s
Elegoo Mars 2 100% 3D Materials SuperFast Grey 0.05 mm 0.8 s 15 s
Elegoo Mars 2 Pro 100% 3D Materials SuperFast Grey 0.05 mm 0.7 s 5 s
Elegoo Saturn 100% 3D Materials SuperFast Grey 0.05 mm 1 s 5 s
Nova3D Bene4 100% 3D Materials SuperFast Grey 0.05 mm 1.4 s 5 s
Nova3D Bene4 Mono 100% 3D Materials SuperFast Grey 0.05 mm 0.8 s 5 s
Nova3D Elfin 2 Mono 100% 3D Materials SuperFast Grey 0.05 mm 0.9 s 5 s
Anycubic Mono 100% 3D Materials SuperPP Clear 0.1 mm 2.2 s 5 s
Anycubic Mono X 50% 3D Materials SuperPP Clear 0.1 mm 2.2 s 10 s
Longer Orange 30 100% 3D Materials SuperPP Clear 0.1 mm 13 s 40 s
Creality LD-002R 100% 3D Materials SuperPP Clear 0.1 mm 13 s 40 s
Creality LD-002H 100% 3D Materials SuperPP Clear 0.1 mm 1.8 s 5 s
Elegoo Mars 100% 3D Materials SuperPP Clear 0.1 mm 12 s 40 s
Elegoo Mars 2 100% 3D Materials SuperPP Clear 0.1 mm 2.6 s 5 s
Elegoo Mars 2 Pro 100% 3D Materials SuperPP Clear 0.1 mm 2.6 s 5 s
Elegoo Saturn 100% 3D Materials SuperPP Clear 0.1 mm 2.6 s 10 s
Nova3D Bene4 100% 3D Materials SuperPP Clear 0.1 mm 7.5 s 20 s
Nova3D Bene4 Mono 100% 3D Materials SuperPP Clear 0.1 mm 2.8 s 5 s
Nova3D Elfin 2 Mono 100% 3D Materials SuperPP Clear 0.1 mm 2.8 s 10 s
Anycubic Mono 100% 3D Materials SuperPP Clear 0.05 mm 1.3 s 5 s
Anycubic Mono X 50% 3D Materials SuperPP Clear 0.05 mm 1.8 s 10 s
Longer Orange 30 100% 3D Materials SuperPP Clear 0.05 mm 9 s 20 s
Creality LD-002R 100% 3D Materials SuperPP Clear 0.05 mm 10 s 40 s
Creality LD-002H 100% 3D Materials SuperPP Clear 0.05 mm 1.3 s 5 s
Elegoo Mars 100% 3D Materials SuperPP Clear 0.05 mm 10 s 20 s
Elegoo Mars 2 100% 3D Materials SuperPP Clear 0.05 mm 2 s 5 s
Elegoo Mars 2 Pro 100% 3D Materials SuperPP Clear 0.05 mm 2 s 5 s
Elegoo Saturn 100% 3D Materials SuperPP Clear 0.05 mm 2.2 s 10 s
Nova3D Bene4 100% 3D Materials SuperPP Clear 0.05 mm 5 s 10 s
Nova3D Bene4 Mono 100% 3D Materials SuperPP Clear 0.05 mm 2 s 5 s
Nova3D Elfin 2 Mono 100% 3D Materials SuperPP Clear 0.05 mm 2 s 5 s
Anycubic Mono 100% 3D Materials SuperFlex Clear 0.1 mm 1.9 s 5 s
Anycubic Mono X 50% 3D Materials SuperFlex Clear 0.1 mm 1.6 s 5 s
Longer Orange 30 100% 3D Materials SuperFlex Clear 0.1 mm 5.7 s 40 s
Creality LD-002R 100% 3D Materials SuperFlex Clear 0.1 mm 4.8 s 40 s
Creality LD-002H 100% 3D Materials SuperFlex Clear 0.1 mm 1.1 s 5 s
Elegoo Mars 100% 3D Materials SuperFlex Clear 0.1 mm 5.8 s 40 s
Elegoo Mars 2 100% 3D Materials SuperFlex Clear 0.1 mm 1.5 s 5 s
Elegoo Mars 2 Pro 100% 3D Materials SuperFlex Clear 0.1 mm 1.4 s 5 s
Elegoo Saturn 100% 3D Materials SuperFlex Clear 0.1 mm 1.8 s 10 s
Nova3D Bene4 100% 3D Materials SuperFlex Clear 0.1 mm 4.5 s 5 s
Nova3D Bene4 Mono 100% 3D Materials SuperFlex Clear 0.1 mm 1.7 s 5 s
Nova3D Elfin 2 Mono 100% 3D Materials SuperFlex Clear 0.1 mm 1.7 s 10 s
Anycubic Mono 100% 3D Materials SuperFlex Clear 0.05 mm 1.7 s 5 s
Anycubic Mono X 50% 3D Materials SuperFlex Clear 0.05 mm 1.5 s 10 s
Longer Orange 30 100% 3D Materials SuperFlex Clear 0.05 mm 4.5 s 20 s
Creality LD-002R 100% 3D Materials SuperFlex Clear 0.05 mm 3.7 s 20 s
Creality LD-002H 100% 3D Materials SuperFlex Clear 0.05 mm 1 s 5 s
Elegoo Mars 100% 3D Materials SuperFlex Clear 0.05 mm 4.7 s 30 s
Elegoo Mars 2 100% 3D Materials SuperFlex Clear 0.05 mm 1.3 s 5 s
Elegoo Mars 2 Pro 100% 3D Materials SuperFlex Clear 0.05 mm 1.3 s 5 s
Elegoo Saturn 100% 3D Materials SuperFlex Clear 0.05 mm 1.4 s 10 s
Nova3D Bene4 100% 3D Materials SuperFlex Clear 0.05 mm 3.3 s 5 s
Nova3D Bene4 Mono 100% 3D Materials SuperFlex Clear 0.05 mm 1.5 s 5 s
Nova3D Elfin 2 Mono 100% 3D Materials SuperFlex Clear 0.05 mm 1.5 s 5 s
Anycubic Mono 100% 3D Materials SuperHDT Clear 0.05 mm 4 s 10 s
Anycubic Mono X 50% 3D Materials SuperHDT Clear 0.05 mm 5 s 10 s
Longer Orange 30 100% 3D Materials SuperHDT Clear 0.05 mm 25 s 20 s
Creality LD-002R 100% 3D Materials SuperHDT Clear 0.05 mm 25 s 30 s
Elegoo Mars 100% 3D Materials SuperHDT Clear 0.05 mm 28 s 30 s
Elegoo Mars 2 100% 3D Materials SuperHDT Clear 0.05 mm 4.5 s 10 s
Elegoo Mars 2 Pro 100% 3D Materials SuperHDT Clear 0.05 mm 4.5 s 10 s
Elegoo Saturn 100% 3D Materials SuperHDT Clear 0.05 mm 7 s 10 s
Nova3D Bene4 100% 3D Materials SuperHDT Clear 0.05 mm 15 s 15 s
Nova3D Bene4 Mono 100% 3D Materials SuperHDT Clear 0.05 mm 4.4 s 10 s
Nova3D Elfin 2 Mono 100% 3D Materials SuperHDT Clear 0.05 mm 4.6 s 10 s
Voxelab Proxima 6.0 100% 3D Materials SuperHDT Clear 0.05 mm 5.6 s 20 s
Voxelab Proxima 8.9 100% 3D Materials SuperHDT Clear 0.05 mm 8 s 10 s
Creality Halot One 100% 3D Materials SuperHDT Clear 0.05 mm 5 s 10 s
Creality Halot Sky 100% 3D Materials SuperHDT Clear 0.05 mm 2.5 s 10 s
Verified Printer UV Power Resin Brand Name Color Mix Layer Height Exposure Base Exposure Lift Speed Temperature

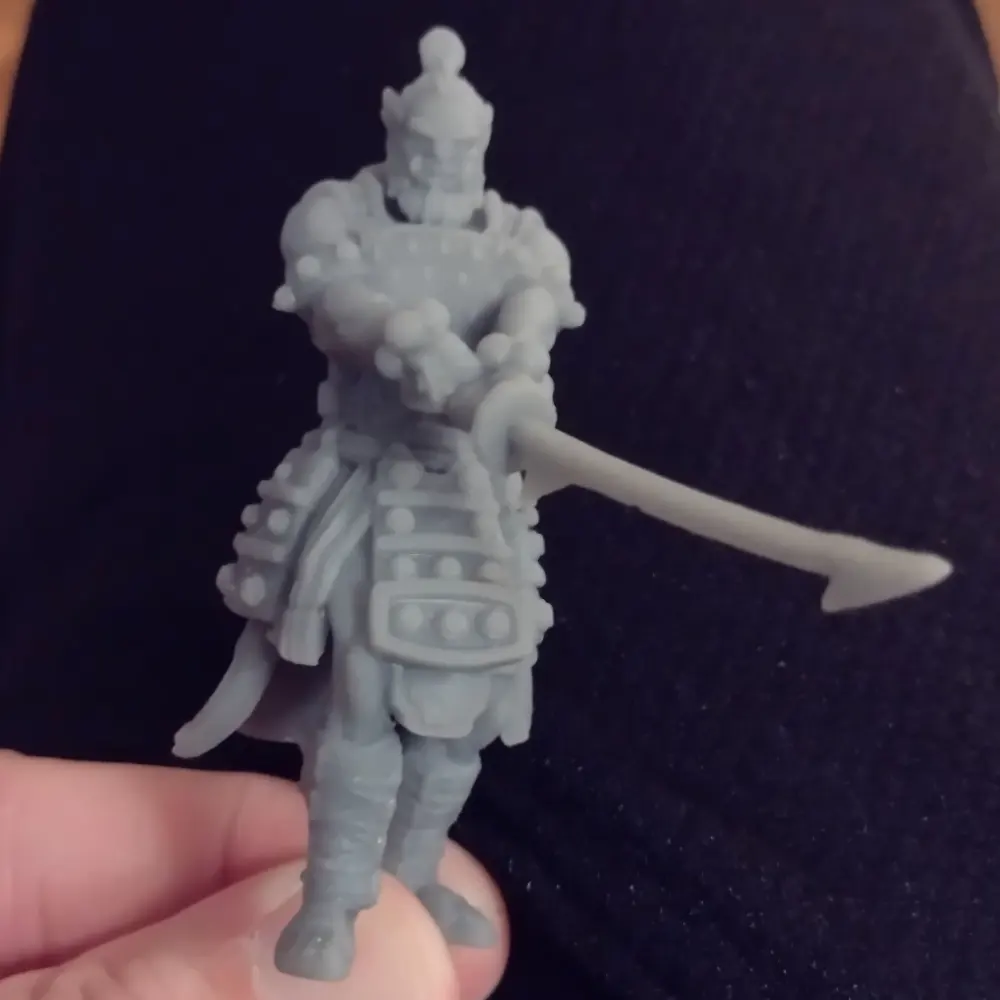

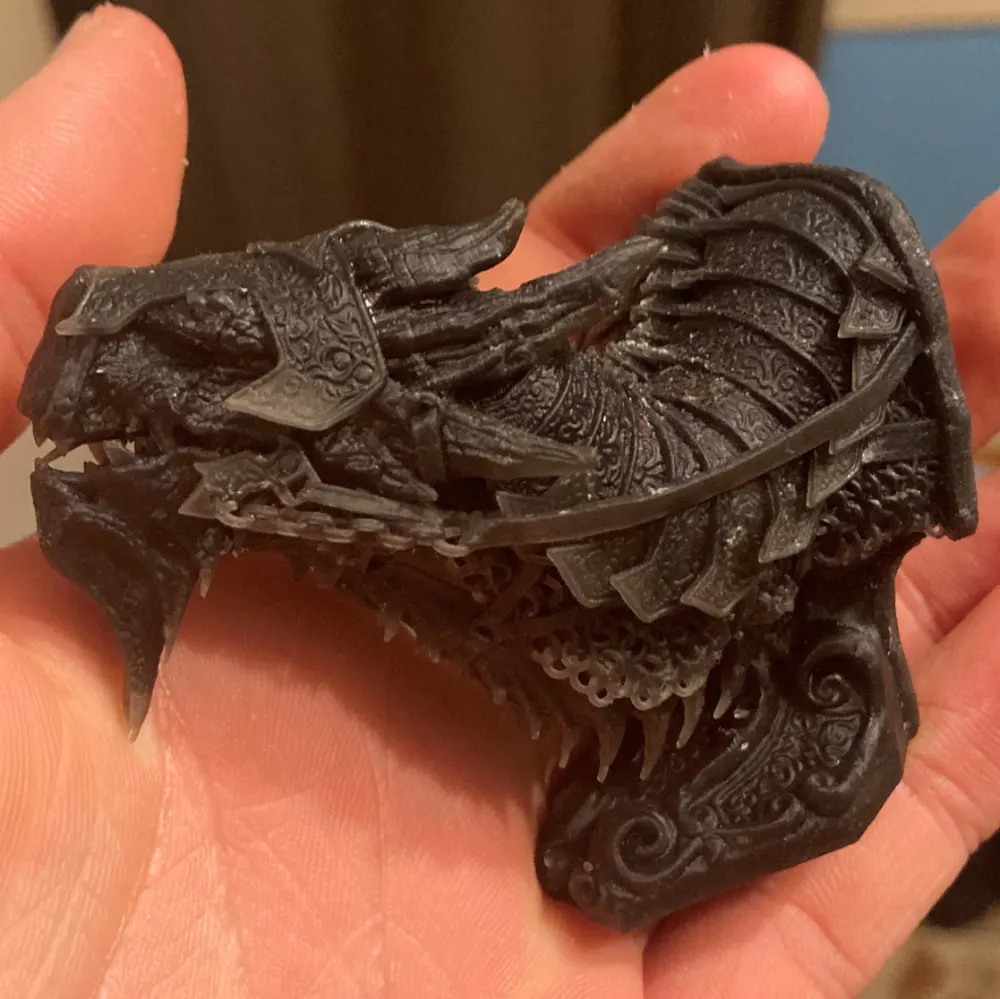

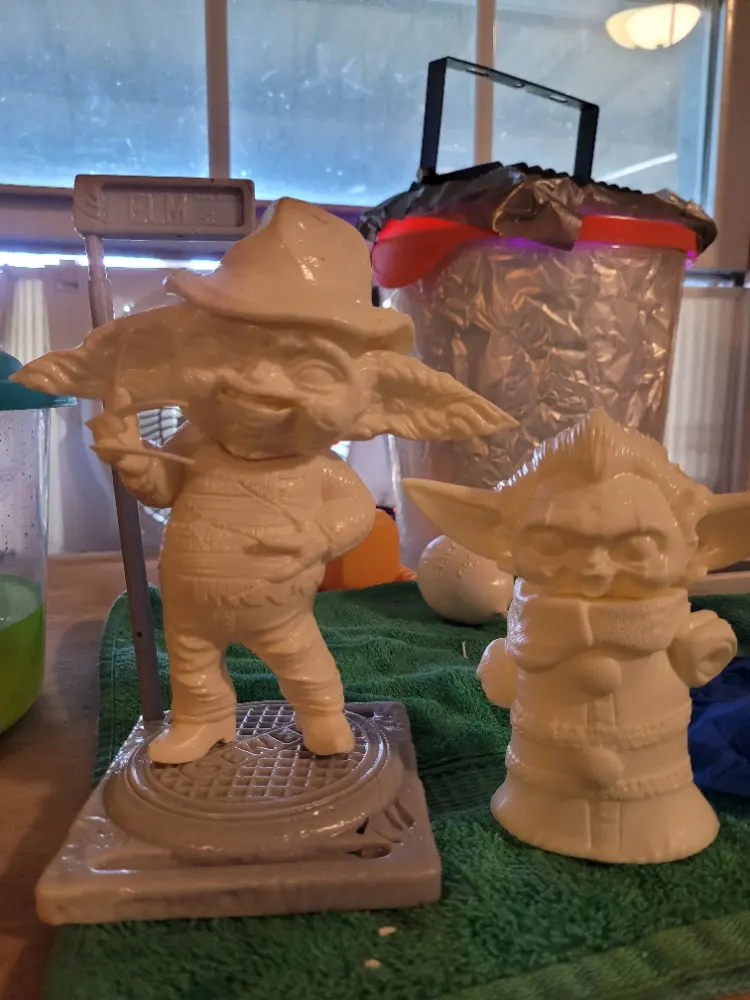

Print settings that are verified by us will have the "Image" on the far left

Any mixes will be labeled by the majority resin ie: 90% Siraya Fast and 10% Tenacious -> Siraya Fast [with] Tenacious 10%

If you plan to change the layer height:
Lower layer heights will require a lower exposure, and thicker layers will require more exposure time.

If you have problems with the print sticking to the bed:
Lower the lift speed (60mm/min is a good baseline), increase the base (aka initial, bottom, burn-in) exposure, raise the ambient temp to ≈25°C (or as specified), and lightly sand the build plate.

If the print is not sticking to the supports:
Lower the lift speed, raise the exposure, and increase the support thickness & density.

If the print is failing and you are printing hollow:
Make sure that you have adequately placed drain/pressure release holes to prevent suction.

To compare resin printers, browse resin, and get equipment inspiration visit our Ultimate Resin Guide.

To compare FDM printers via an interactive table, side-by-sides, and in-depth articles.

Application & Safety FAQ answers common questions about resin.

Ventilation Simulations has animations for common DIY venting setups, and Heating Resin Printers during winter provides data for specific heat sources.

Our Resin Print Settings Table has associated images, mixes, and does a resin giveaway.

To browse resin properties and find your ideal strong, durable, flexible, or high-temp resin visit our Resin Properties Table. To find properties of filaments, visit our FDM Properties Table.

Disclaimer: You assume all responsibility and risk for the use of, but not limited to, the resources, advice, and opinions of 4D Filtration or its employees. 4D Filtration or its employees do not assume any liability or create any warranty for the use of any information. 4D Filtration may receive commissions for referral links. Prices are approximated for simplicity and they may fluctuate due to sales or markdowns. Amazon .com should refer you to your local amazon site if you are not in the United States; there is a chance Amazon's link redirect system will take you to a different product.

Back to Resources!Check out our Resin Guide!

Did we miss anything or do you have any information worth an update? Let us know!

Like the resources? Consider supporting us via donation, referral links, or purchases!
