Photon Mono vs Mono SQ vs Mono X

Last Updated: January 12th, 2022

Mono Mono Mono - this is a quick comparison for the Photon Mono, SQ, and X, highlighting the key differences. If you are testing the waters of resin 3D printing for the first time or are on a budget, we recommend to go for the Photon Mono or Mars 2. When you need a larger build volume and have the money then opt for a medium printer. A printer like the Mono SQ is optimal when you are on a budget and the build volume is sufficient.

Anycubic Mono

$190
(phasing out)
Resolution: 0.051mm (XY) 0.01mm (Z)

6" 2k Screen ($40-70)
Print Volume: 130mm (L) 80mm (W) 165mm (H)

Photon Mono vs Mars 2

Anycubic Photon Mono
Anycubic

Anycubic Mono X

$370+

Resolution: 0.05mm (XY) 0.01mm (Z)

8.9" 4k Screen ($110-150)
Print Volume: 192mm (L) 120mm (W) 245mm (H)

Saturn vs Mono X

Anycubic Photon Mono X
AnycubicAmazonAliExpress

Mono, Mono SQ, and Mono X

  • All three of the Anycubic printers essentially have the same XY resolution at 0.05mm - the Photon Mono has an XY resolution of 0.051mm.
  • Anycubic's resin printers have the RERF file which allows you to print eight exposure times in one go, making calibration faster.

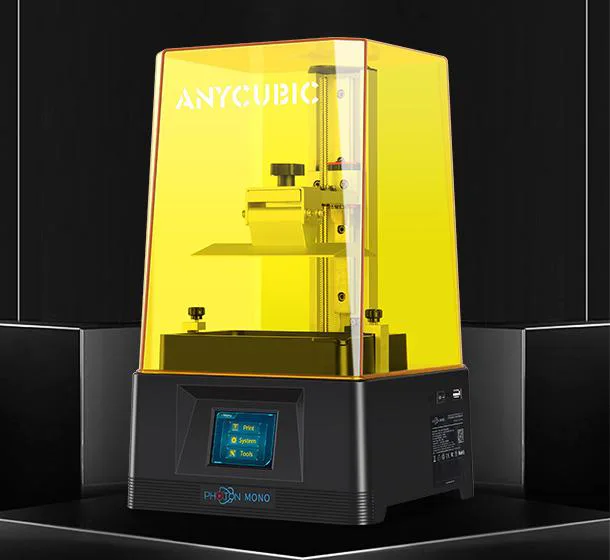

Anycubic Photon Mono

  • The Photon Mono has the smallest build volume at 130 x 80 x 165mm.
  • The Photon Mono has a plastic vat and uses a pre-assembled FEP - if you want to use any FEP sheet or have a metal vat, then grab a Sovol vat.
  • The light intensity of the Mono X is 2.67 mW/cm2.
  • The power consumption of the Photon Mono is rated at 45W.
Mono

Anycubic Photon Mono SQ

  • The Photon Mono SQ's build volume is middle of the road at 128 x 120 x 200mm.
  • There is an adjustable UV power level on the printer itself.
  • The Mono SQ has a metal vat by default.
  • The power consumption of the Photon Mono SQ is rated at 66W.
Mono SQ

Anycubic Photon Mono X

  • The Photon Mono X has the largest build volume of the three at 192 x 120 x 245mm.
  • There is an adjustable UV power level on the printer itself.
  • The light intensity of the Mono X is 1.78 mW/cm2 at only 50% UV power.
  • The Mono X has a metal vat by default.
  • The Mono X also has dual linear rails for additional stability.
  • The power consumption of the Photon Mono X is rated at 120W.
Mono X

To compare resin printers, browse resin, and get equipment inspiration visit our Ultimate Resin Guide.

To compare FDM printers via an interactive table, side-by-sides, and in-depth articles.

Application & Safety FAQ answers common questions about resin.

Ventilation Simulations has animations for common DIY venting setups, and Heating Resin Printers during winter provides data for specific heat sources.

Our Resin Print Settings Table has associated images, mixes, and does a resin giveaway.

To browse resin properties and find your ideal strong, durable, flexible, or high-temp resin visit our Resin Properties Table. To find properties of filaments, visit our FDM Properties Table.
